Osoconn Web App

The web app provides an easy-to-use graphical interface. The user interface is designed to be intuitive with diagrams provided to clarify the details of the connection.

Providing inputs

Inputs are provided in the input tab using familiar input elements such as text boxes and drop downs. These elements are grouped into various panes for convenience. Inputs can be provided either using (Newton, mm) or (kip, in) as the units of measurement.

Running the connection design

After providing the connection design input the connection is checked using the Run button. The output produced from running the connection design is displayed in the output tab.

Exporting the connection data

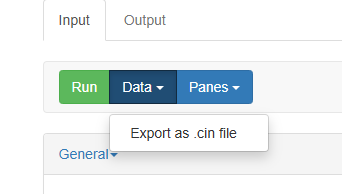

The connection data in the input pane can be exported to a cin input file using the data>"Export as .cin file" option.
